Lighting

dash

by Steelcase
    View all options in our Finish Library. View All Materials

    Sorry, no results found.

    dash mini LED task lights offer individuals added control and adjustability to place the proper amount of task lighting to create a holistic work setting.

    Planning for the Workplace?

    Uncover options to create an inspiring space.

    Configure Now
    Buy Now

    Shopping for a Home Office?

    See all the options for your work-from-home upgrade.

    Buy Now

    Maximum Control

    The dash LED Task light, designed by Steelcase in collaboration with Foster + Partner, uses an optical system to eliminate contrast and shadows, and has dimming control from 15–100%. Points of articulation provide maximum user control, and it’s the  first freestanding personal task light to meet BIFMA level 1 certification.

    Features

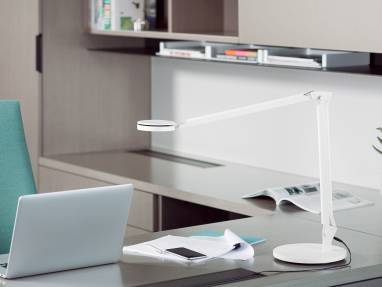

    Dash LED Task Light on desk Open image tooltip

    Energy Savings

    An optional Passive Infrared (PIR) occupancy sensor—with a 36″ activation range—turns the light off when it is not in use to avoid unnecessary energy use and extend lamp life.

    Dash LED Task Light on desk Open image tooltip

    Cooler to the touch

    The dash task light’s innovative design features a convection airflow solution that minimizes heat transfer, keeping the light head from becoming hot.

    dash lighting Open image tooltip

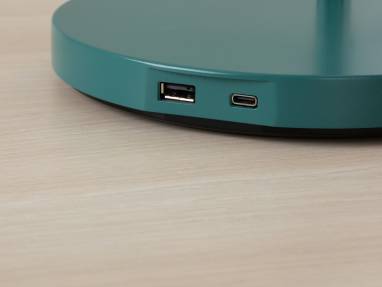

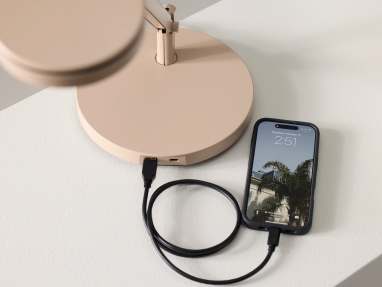

    USB Base

    Available with USB freestanding base. USB Base is integrated with 2 USB charging ports including one USB type C (up to 60W max) and USB type A (2.4A max). Dash USB‐C contains intelligent control circuitry that provides maximum power requested by a wide variety of popular electronic devices.

    Subtle. Bold. Versatile.

    Complemented by a wide range of colors, the classic design of dash and dash mini offer the ability to complete a space or give it a splash of life—so choosing the right light for the workspace and the user is simple.

    EnvironmentalOpen image tooltip

    Sustainability

    Designing for Sustainability

    We create products that are good for people, and good for the world. Our products and operations are designed around a commitment to reduce climate change, reinforced by sustainable practices across our value chain.
    Our Sustainable Design framework ensures our products are designed with consideration of life cycle thinking and cradle-to-cradle principles:

    • Source materials responsibly
    • Minimize global warming and other life cycle impacts
    • Ensure material health
    • Enable end-of-use strategies

    Read More

    Dash Product Environmental Profile

    Specifications

    Standard + Optional Features
    Dimensions
    Global Availability

    Standard + Optional Features

    Standard + Optional Features

    Standard + Optional Features

    • 9.3 watts System Wattage
    • 50,000-hour-rated LED life
    • 3,500K color temperature
    • Polished textured reflector
    • Continuous range dimming control from 100% to 15%
    • Three pivot points of articulation
    • Momentary soft-touch switch
    • Optional occupancy sensor
    • Optional 2 port USB type C and type A base
    • Variable spring force for easy adjustability
    • Convection airflow in head for heat dissipation
    • Dual conductivity path to prevent power loss
    • Replaceable light head
    • User-adjustable tension control knobs

    Mounting Options

    • Freestanding
    • Freestanding USB
    • Rail-mounted
    • With C-clamp mount
    • Panel-mounted
    • Slatwall + SlatRail mounted

    View more details and dimensions

    Dimensions

    Dimensions

    dash

    • Three user‐adjustable tension control knobs
    • 0” – 37” horizontal arm range
    • 2” – 25” vertical height adjustment
    • 360° light head rotation
    • 360° at mounting bracket
    • 160° at freestanding bases
    • dash with base 9.65 lbs, dash with bracket mount 2 lbs.

    dash mini

    • Two user‐adjustable tension control knobs
    • 0” – 24” horizontal arm range
    • 0” – 20 3/8” vertical height adjustment
    • 360° light head rotation
    • 360° at mounting bracket
    • 160° at freestanding bases
    • dash mini with base 9.25 lbs, dash mini with bracket mount 1.8 lbs.

    View more details and dimensions

    Global Availability

    Global Availability


    This product is available in the following regions:

    • Central America
    • North America
    • Europe
    Not available in your region?

    If you're interested in purchasing a product that's not available in your region, please contact your local dealer for purchasing options.

    Find a Local Dealer
